Long Arm Heavy Duty Cylinder Bed Horizontal Direction Sewing Machine For Like Boot Long Barrel Products GA411N

Supper long arm type special sewing machine, with arm long for 960mm. Special horizontal direction sewing design for sewing like boot or long barrel heavy duty products.

CONTACT NOW PDF DOWNLOAD

Product Detail

Product Tags

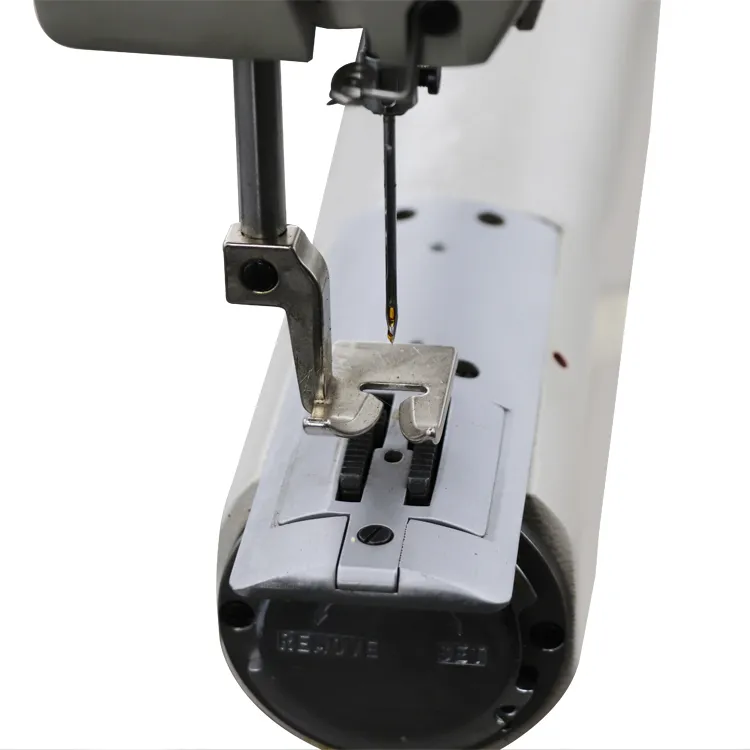

Supper long arm type special sewing machine, with arm long for 960mm. Special horizontal direction sewing design for sewing like boot or long barrel heavy duty products. Use the JUKI TSC-441 big shuttle hook, can sew very thick thread by this machine, even 1300D*3. It is suitable for very thick thread, and very thick and hard material. Extra big shuttle hook with big bobbin thread volume.

Products Details:

Bottom Feeding system, horizontal direction sewing and feeding.

Adopt special extra big Barrel Shuttle Hook and bobbin capacity, reduces bobbin change times and offers high efficiency in sewing products. Can be used for extra thick thread up to metric size 7* (=V415, 1300dX3 or T-400).

Suppler long arm for 960mm, total working space very big. Suitable for big and thick barrel products sewing.

Specification

Model：	GA411N
Max.sewing speed：	800r.p.m
Stitch length：	0-11mm
Take-up lever stroke：	96mm
Need bar stroke：	56mm
Presser foot lift：	Handle: 13mm, Knee: 23mm
Bed size in dia：	81mm
Shuttle hook：	KSP-204N
Needle size	DY×3 27#
Lubrication mode：	Manual
Motor：	550W 4P
Operating space：	960×197mm
