Container Bag / Big Bag Automatic Computerized Pattern Sewing Machine For Spout Rosettes Sewing LS200-3020CM

LS200-3020CM automatic pattern sewing machine is specially designed for container bag’s spout rosettes, or we call it outlet rosettes sewing.

CONTACT NOW PDF DOWNLOAD

Product Detail

Product Tags

LS200-3020CM automatic pattern sewing machine is specially designed for container bag’s spout rosettes, or we call it outlet rosettes sewing. Specially designed clamping fixture can standard producing big bag’s output mouth. Use Dahao computerized control system, can storage 900 different patterns, we have all kinds of patterns in offer for FIBC bags with standard offer, also customer can due to their needs design new pattern themself. Using 3 times big rotary hook, max speed 2800rpm, can highly increase the working efficiency. It is lifting head design also can be used for sewing some very thick and soft material. Working area: 300mmx200mm.

LS200 series we have different version in offer:

LS200-3040 Working area: 300x400mm, belt to FIBC’s body length 400mm.

LS200-3050 Working area: 300x500mm, belt to FIBC’s body length 500mm.

LS200-3020CM Working area: 300x200mm, for FIBC’s outlet spout sewing.

LS200-3020CM Feature & Functions:

Big rotary hook, 3 times big bobbin highly reduce bobbin changing times.
Specially designed clamping fixture for spout rosettes sewing.
Max speed up to 2800 rpm, working speed 100-2500rpm, stitch length max 10mm, highly improve sewing speed.
Computerized control system, freely design new patterns. With high accurate servo motor drive system, making sure each time pattern sewing same.
Specially designed sewing head lifting system, more easy to load sewing material.
S.S. 304 table top cover for food and other high requirement FIBC bag producing.

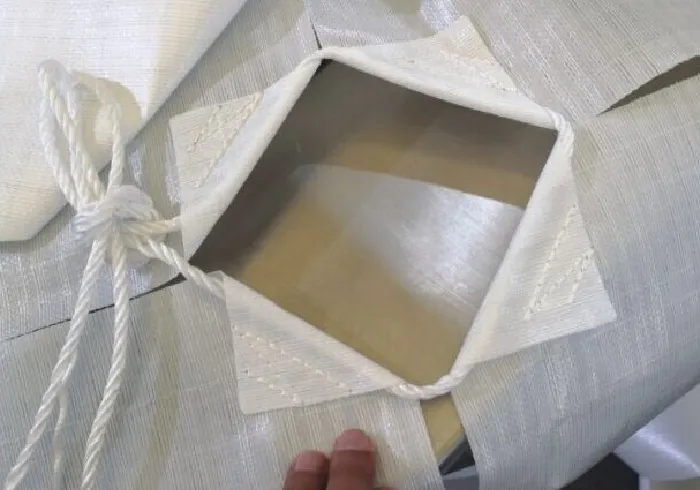

Product Usage
