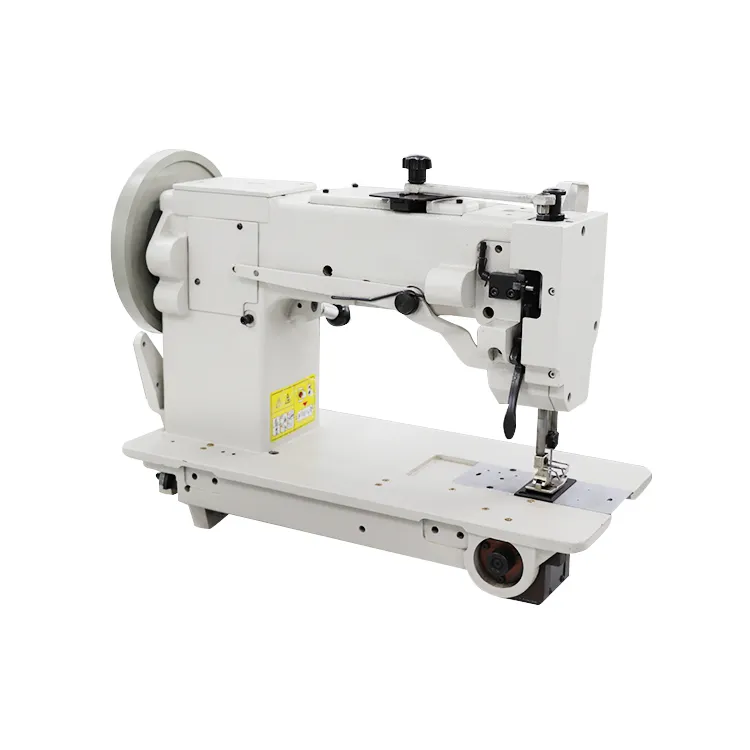

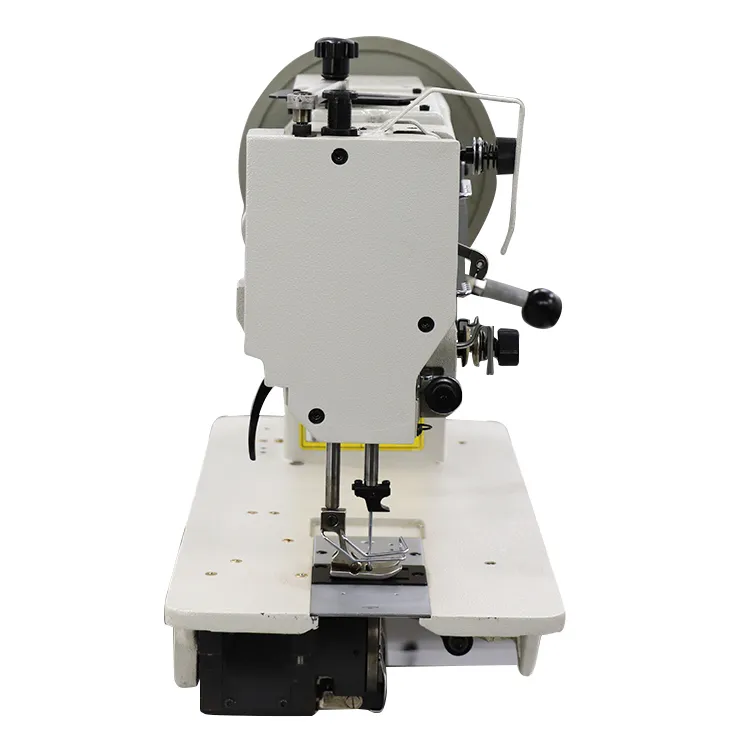

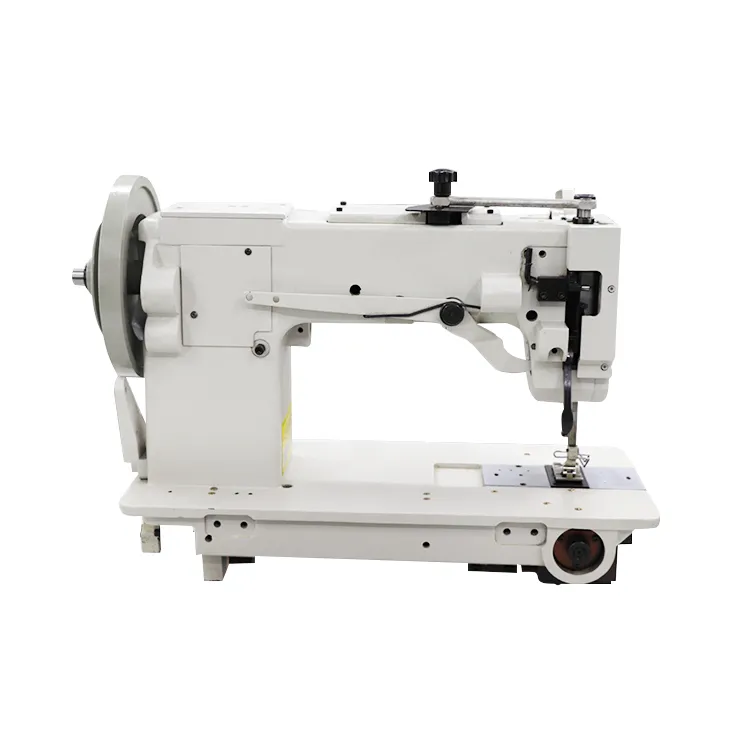

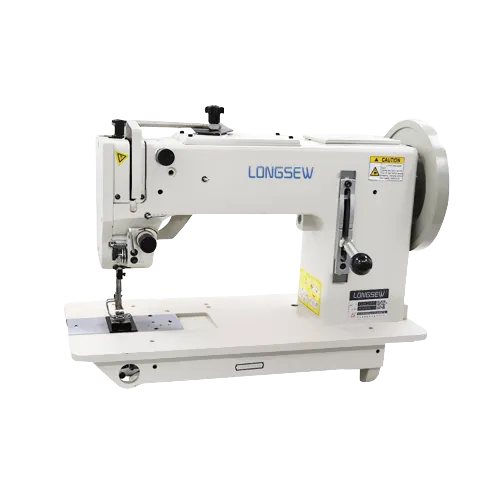

Heavy Duty Zigzag Sail Bottom Feed Sewing Machine LS266/LS266TD

266 series sewing machine is heavy duty zigzag sewing machine, use big shuttle hook, special designed sewing sail；safety rope, other heavy duty material zigzag connection sewing. Adopt for very thick threads, pneumatic foot lift & pneumatic reverse sewing is optional. Because it have strong power for penetrating hard material, so it is widely used in Sail making industry.

CONTACT NOW PDF DOWNLOAD

Product Detail

Product Tags

LS266 series we have different version in offer :

LS266 Basic function type. Mostly motor option is 380V 3phases clutch motor.

LS266TD Based on basic function, add pneumatic presser foot lift & pneumatic reverse sewing. Both can use clutch motor & servo motor. (Servo motor with Needle position fixed up function)

Products Details:

Optional parts for pneumatic foot lift & pneumatic reverse sewing. Heavy duty zigzag suitable for tents, sails, leather, seat cushions, sofas, bags, and other heavy materials connection sewing.

Using ( Durkopp Adler) 204 big shuttle hook, increase bobbin thread capacity, improve working efficiency. Can use very thick thread (1500dx3, V415, V462, T-500 or 1.4mm hollow thread, flat thread, or upholstery thread)

This machine adopts connecting rod pick up thread, big shuttle hook, for extra heavy duty material zigzag sewing.

Specification

Model：		LS266/LS266TD
Max.sewing speed：		800r.p.m
Max stitch length:		10mm
Max zigzag width:		12mm
Max sewing diameter for climbing rope:		16mm
Presser foot lift	By hand
	By knee	20mm
Shuttle hook：		KSP-204
Needle：		DYx3 27#
Lubrication：		Manual
Working space：		320x185mm
