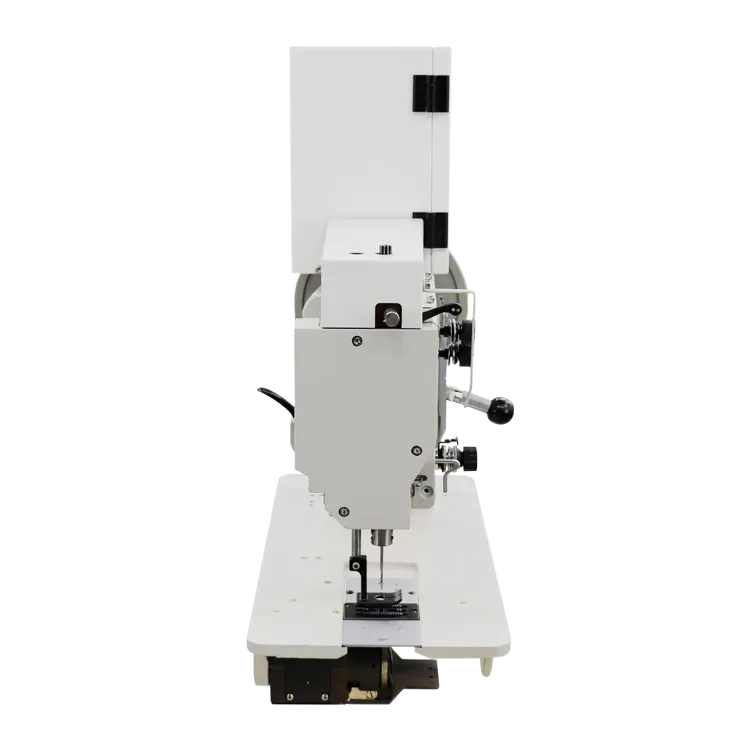

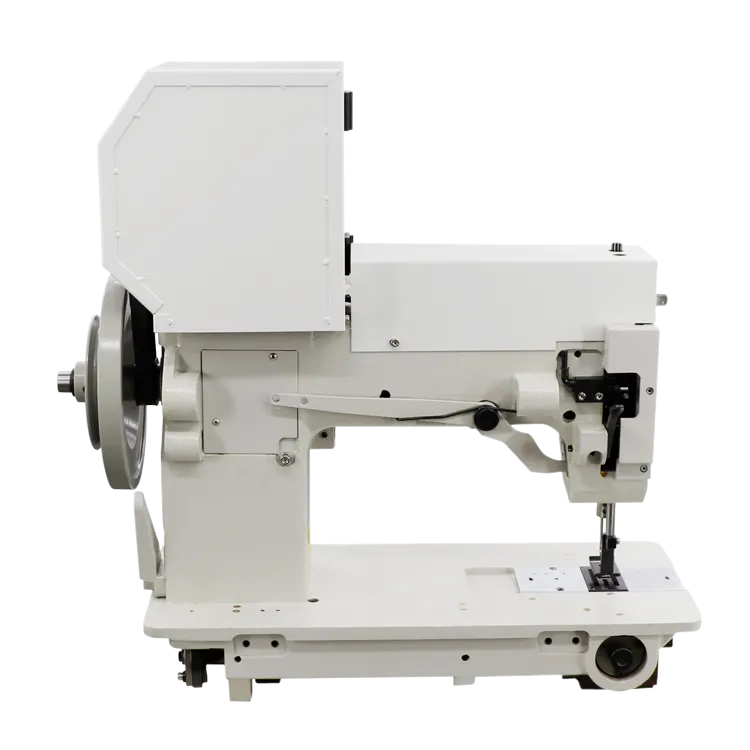

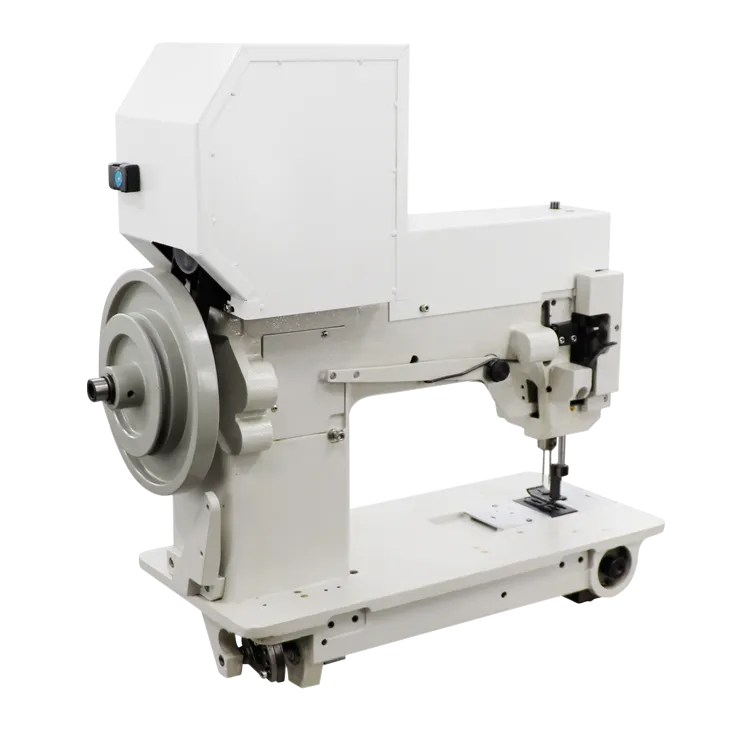

Heavy Duty Single/Double Needles Pattern Sewing Machine LS266-MP

CONTACT NOW PDF DOWNLOAD

Product Detail

Product Tags

LS266-MP series sewing machine use (Durkopp Adler) 204 big shuttle hook, increase bobbin thread capacity, can use very thick thread (1500dx3, V415, V462, T-500 or 1.4mm hollow thread, flat thread, or upholstery thread), is specially designed for upholstery leather pattern sewing. With 7 pattern wheels, so single needle have 7 patterns, double needles have 7 patterns, totally 14 patterns can be made. With 14 patterns can fulfill most of customer’s needs on the upholstery sewing. If more patterns needed can choose our computerized pattern sewing machine LS266-CP series. Still it is enough for most upholstery sewing, like for leather sofa, leather furniture etc.

Products Details:

	Through the needle rotation technology to sew different patterns.
	Change the pattern wheel to change pattern, convenient and fast
	Using ( Durkopp Adler) 204 big shuttle hook, increase bobbin thread capacity, improve working efficiency. Can use very thick thread (1500dx3, V415, V462, T-500 or 1.4mm hollow thread, flat thread, or upholstery thread)

Specification

Model：		LS266-MP
Max.sewing speed：		500r.p.m
Max stitch length:		10mm(0-10mm)
Needle Gauge:		8mm/10mm/12mm
Sewing Patterns:		14 types
Presser foot lift	By hand
	By knee	20mm
Shuttle hook：		KSP-204
Needle：		DYx3 27#
Lubrication：		Manual
Working space：		320x185mm

Application

leather sofa, cloth art sofa, leather car seat covers, car seat cloth art cover, soft furniture, tent, leather shoes, casual shoes, bags, bags, jeans, denim clothes, harness and all kinds of abutted sewing and thick thread upholstery sewing in furniture manufacturing industry.
