Heavy Duty Computerized Auto Pattern Sewing Machine For Slings LS273-3020

LS273 series auto pattern sewing machine use (Durkopp Adler) 204 big shuttle hook, increase bobbin thread capacity, can use very thick thread (1500dx3, V415, V462, T-500 or 1.4mm hollow thread, flat thread, or upholstery thread), is specially designed for heavy duty pattern sewing. LS273 sewing machine is based on GA243 sewing machine head modified to auto pattern sewing machine.

CONTACT NOW PDF DOWNLOAD

Product Detail

Product Tags

It use Dahao computerized control system, can design pattern yourself or down load pattern due to different requirement. Sewing area: X direction 300mm, Y direction: 200mm, with different clamp can fulfill different products sewing. We have different working area in offer, most popular selling area is 2010 ( 200mmx100mm), 3020 ( 300mmx200mm), 5020(500mmx200mm) for heavy duty lifting slings or safety rope. Also we have also offer for some special customer for bigger working size, like 6040(600mmx400mm), For the Y direction Max is 400mm, X direction we can make more bigger for example 800mm. Customer can due to your sewing products choose the suitable machine for you.

LS273 series we have different version in offer:

LS273-2010 Working area: 200mmx100mm

LS273-3020 Working area: 300mmx200mm

LS273-5020 Working area: 500mmx200mm

LS273 we also make special bigger size for ODM for some special type products.

Products Details:

Adopting hot cutter system, safe and stable.

We use Dahao computerized control system, can design pattern yourself, or down load new patterns, reduce reliance on skilled workers.

Using ( Durkopp Adler) 204 big shuttle hook, increase bobbin thread capacity, improve working efficiency. Can use very thick thread.

Specification

Model：	LS273-3020
Sewing speed：	100-800r.p.m
Max stitch length:	12mm(0.1-12mm)
Sewing area:	X direction max.:300mm; Y direction max.:200mm
Storage of sewing Patterns:	999
Shuttle hook：	KSP-204
Needle：	DYx3 27#
Thread Cutting system	Mechanical thread cutter/ pneumatic hot cutter(optional)
Lubrication：	Pneumatic refueling
Power:	200-240V Single phase

Application

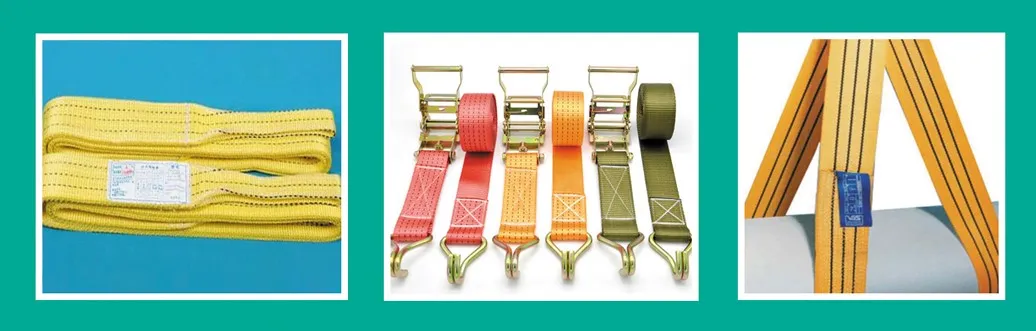

Lifting sling, Polyester lifting slings, cargo lashing straps (Ratchet Tie Down), safety harness, military equipment, shoes soles, backpacks, crane slings, lanyards, fall protection and fall arrest systems, parachute harness, tow strap, recovery strap, webbing cargo nets (cargo Netting and safety nets), safety belts, upholstered furniture, leather products, fall protection equipment, industrial safety products, tents and canopies, sails, parachutes, and other heavy duty lockstitch pattern sewing.

Product Usage
