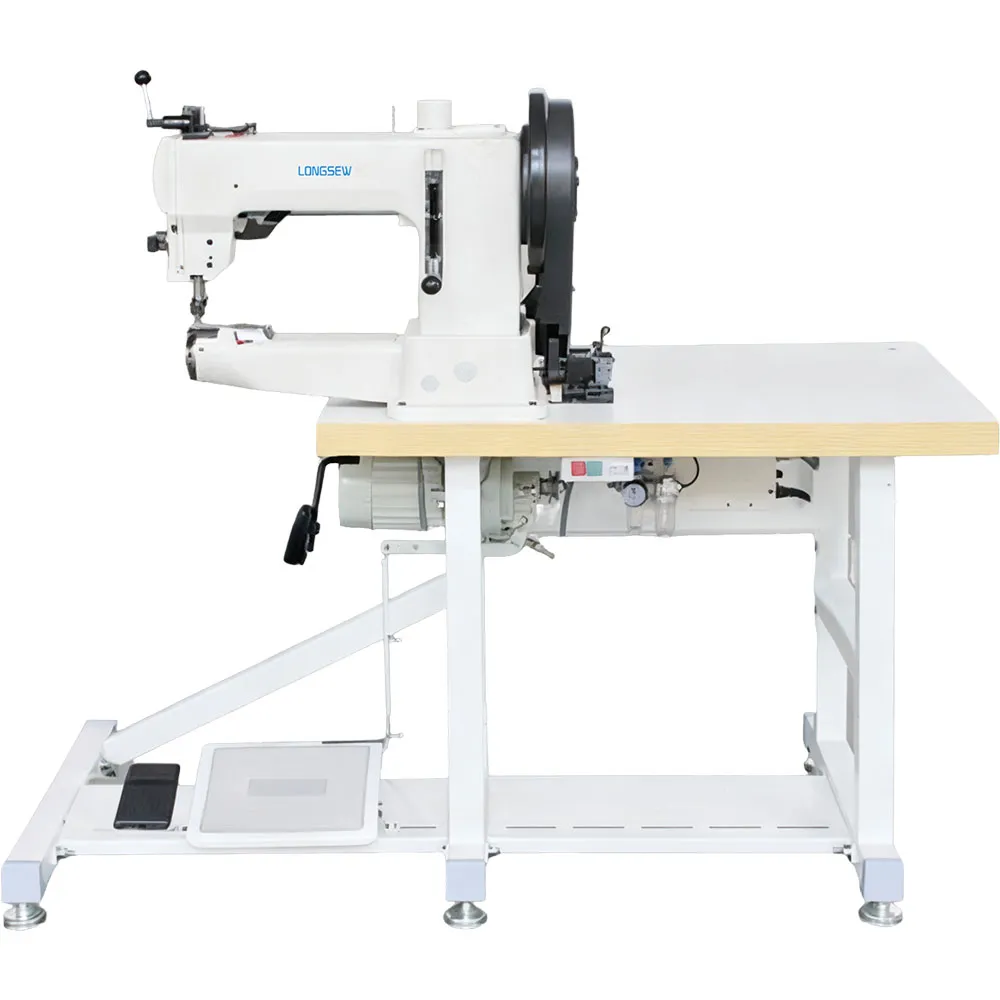

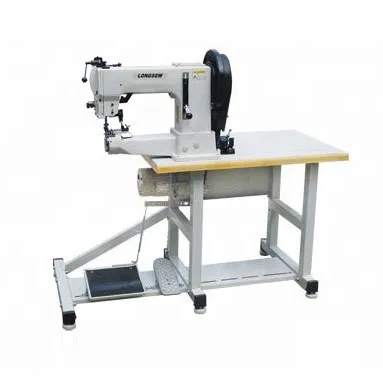

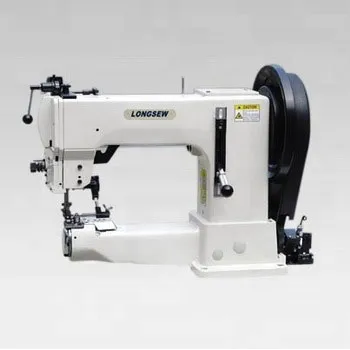

Heavy Duty Compound Feed Cylinder Bed Lock Stitch Sewing Machine GA205-370

The GA205 series sewing machines are widely used in heavy-duty fields, featuring a large shuttle hook and flatbed flat sewing. This model is mainly used for sewing in interior decoration and leather, and in some special fields, it is used for sewing very thick threads and very thick hard materials. It has the same structure as Adler machines and has better penetration for hard materials. It is widely used in sewing webbing, straps, seat belts, and leather products. This model is equipped with a high-strength cast iron body, ensuring stability and durability during long-term high-load operation. It adopts a double-reinforced feed dog design, which can easily meet the synchronous feeding requirements of multiple layers of heavy materials. It is equipped with an adjustable presser foot pressure device, which can be precisely adjusted according to the characteristics of different materials to ensure uniform and consistent sewing results.

CONTACT NOW PDF DOWNLOAD

Product Detail

Product Tags

Heavy Duty Compound Feed Cylinder Bed Lock Stitch Sewing Machine GA205-370 With different arm long GA205 have different types:

GA205-370 arm long 310mm
GA205-420 arm long 420mm
GA205-635 arm long 635mm

Heavy Duty Compound Feed Cylinder Bed Lock Stitch Sewing Machine GA205-370 GA205-370 Feature & Functions:

This series is a kind of sewing machine for thick materials,which is designed for large-scale and extra-thick objects especial. The sewing machine,driven by large power servomotor, adopts long-arm post-bed type and comprehensive feeding with large vertical shuttle hook.it possesses the following advantages: stable and strong feeding, smooth and nice stitch, wide operating space and easy sewing for multilayer extra-thick materials. It is also equipped with pneumatic presser lifting device with large presser stroke and pneumatic back stitch equipment with convenient and easy operation.At the same time, high-performance servo control system can select and set various sewing modes convently. This kind of sewing machine is especially applicable for large-scale and extra-thick machine such as tent, sails, umbrella, covers for automobile, protective cover, camouflage net and so on.

Heavy Duty Compound Feed Cylinder Bed Lock Stitch Sewing Machine GA205-370 Specification

Model		GA205-370
Max sewing speed RPM		800
Stitch Length		0-10mm
Hook		Big Oscillating Shuttle Hook
Feeding		Compound Feeding(Top bottom and needle)
Working area		310x185mm
N.WT (kg)	Sew. head	69
	Complete	122
Dimension (mm)	Length	1060
	Width	550
	Height	1600

Heavy Duty Compound Feed Cylinder Bed Lock Stitch Sewing Machine GA205-370 Application

saddle, saddlery, harness, holster, horse tacks, chap, leather belts, leather sheath, leather bags, leather briefcases, bridles, stirrup, webbing slings, safety harness, animal collars, leashes.

Heavy Duty Compound Feed Cylinder Bed Lock Stitch Sewing Machine GA205-370
