FIBC Bag / Jumbo Bag / Bulk Bag Single Needle Lock Stitch Top & Bottom Feeding Flat Bed Sewing Machine GSC2602 /GSC2602TD /GSC2602-L25/ GSC2602-L25TD

GSC2602 series lockstitch sewing machine is specially designed sewing machine for bulk bag making, mainly for replace shuttle hook sewing machine like 4-1.

CONTACT NOW PDF DOWNLOAD

Product Detail

Product Tags

SC2602 series lockstitch sewing machine is specially designed sewing machine for bulk bag making, mainly for replace shuttle hook sewing machine like 4-1. Compared with shuttle hook sewing machine, this machine adopt 5 times big rotary hook, increase the speed from 800rpm to 1200rpm. GSC2602TD add pneumatic foot lift & pneumatic reverse sewing system highly increase working efficiency. This machine have long history producing, its stable quality performance, good sewing result still welcomed by lots FIBC bag manufacture. Also it is widely used for sewing lifting belt, sports products, safety belt, tent etc.

GSC2602 series we have different version in offer:

GSC2602 Basic function type. Mostly motor option is 380V 3phases clutch motor.

GSC2602TD Based on basic function, add pneumatic presser foot lift & pneumatic reverse sewing. Both can use clutch motor & servo motor. (Servo motor with Needle position fixed up function).

GSC2602-L25 long arm type GSC2602, basic function, arm long 25”(635mm).

GSC2602-L25TD. Based on GSC2602-L25. Add pneumatic foot lift and pneumatic reverse sewing function.

GSC2602TD Optional Function:

1.5 time big rotary hook
2.High speed max can reach to 1200rmp.
3.Pneumatic foot lift & pneumatic reverse sewing
4.Long arm version can be offer, 25”(635mm) is very useful for some special production.

Products Details

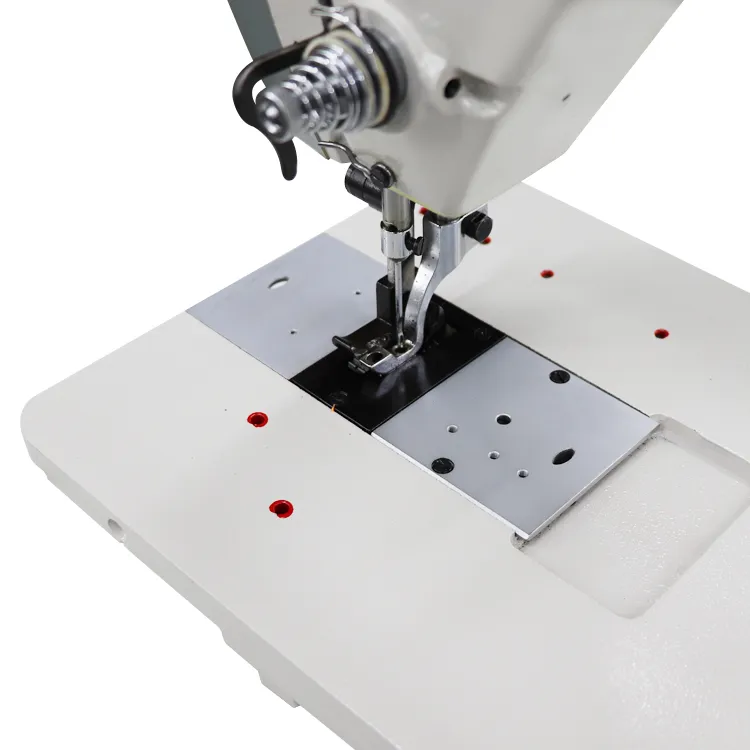

	Precise feeding mechanism design, Strong top and bottom feeding, can ensure that the upper and lower layers do not move, so that sewing beautiful stitch.
	Using five times big rotary hook, increase bobbin’s thread capacity, reduce bobbin changing time , improve the work efficiency. At the same time, the production noise is greatly reduced, the production speed is improved, spare parts using life is longer.
	Pneumatic foot lift & pneumatic reverse sewing system, highly improve worker’s efficiency.

Specification

Model：		GSC2602/GSC2602-L25
Max.sewing speed：		1200r.p.m
Max stitch length:		12.7mm
Presser foot lift	By hand	12.7mm
	By knee	18mm
Rotary hook：		KRT132
Needle：		DDx1 27#
Lubrication：		Manual
Working space：		400x180mm/635x180mm
