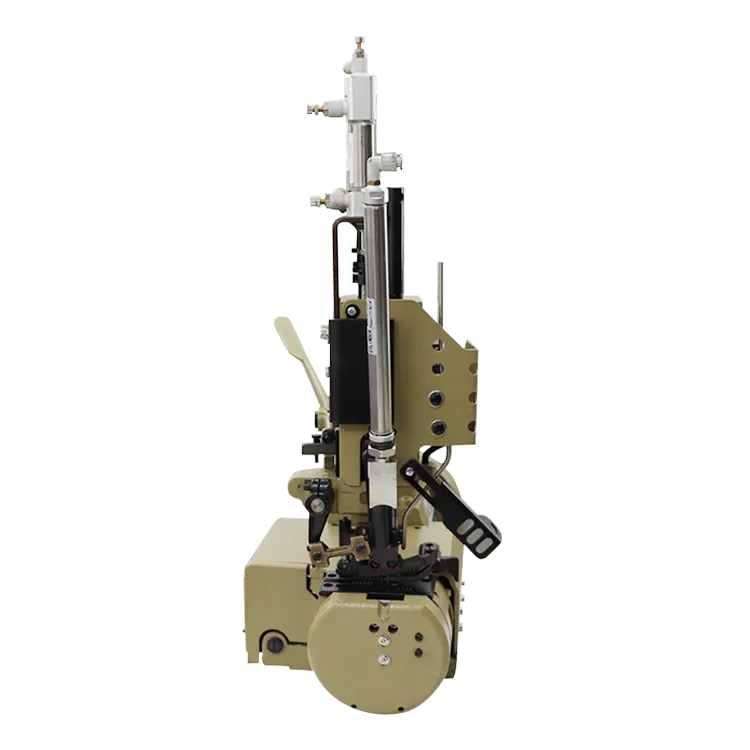

FIBC Bag / Jumbo Bag / Big Bag Double Needles Chain Stitch Cylinder Bed Sewing Machine 80900C/ 80900CD / 80900CD4H

80900 series is cylinder type of 80700, it is more suitable for sewing FIBC bag circle part, cylinder bed will help for sewing more easy and better. It is specially designed for sewing Jumbo bag, due to different bags different function can choose: Single needle or double needles; flat bed or cylinder bed; Pneumatic foot lift or manual; hot cutter or manual. Strong body and motor for max 18mm thickness sewing with filler cord function, all is wonderful for FIBC bags.

80900C Single needle basic function type. Can choose both clutch motor or servo motor.
80900CD Double needles basic function type. Can choose both clutch motor or servo motor.
80900CD4H Double needles with pneumatic foot lift, hot cutter system, needle position fixed up system, needle cooling system. Have to use servo motor.

Optional Function:

• 1.Pneumatic foot lift system
• 2.Hot cutter system
• 3.Spout type table top and stand
• 4.Servo motor or clutch motor

Extra heavy duty capacity up to max 18mm
Max speed up to 1400 rpm; Needle distance 7.2mm; Stitch range from 6-12mm ( Standard setting 10mm)
Double needles 4 threads parallel chain stitch (401+401)
Top & bottom feeding
Top & bottom filler cord guides

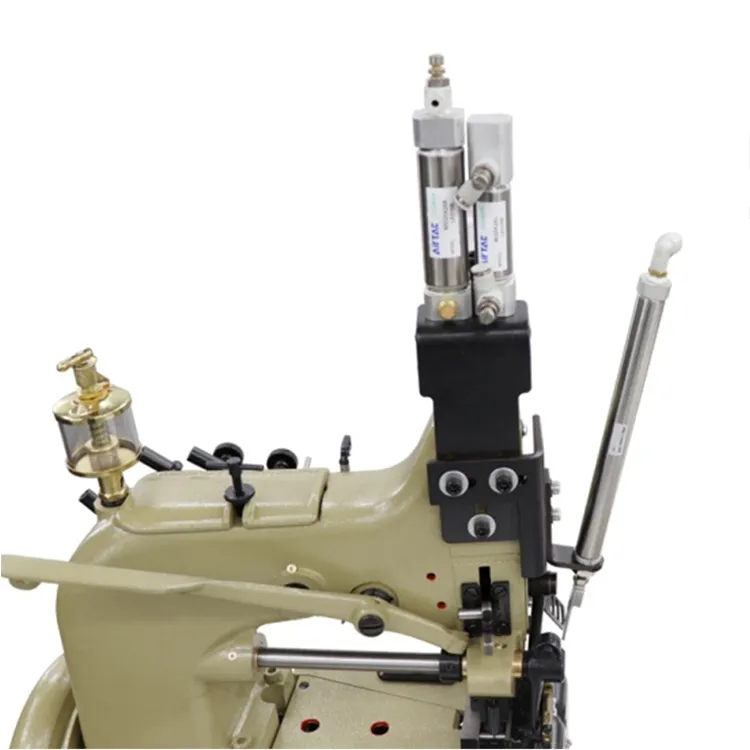

With pneumatic foot lift system & pneumatic hot cutter system
Needle position fixed up system
Needle cooling system
220V Single phase 750W servo motor offer strong strength and saving energy.
S.S. 304 table top cover for food and other high requirement FIBC bag producing.
