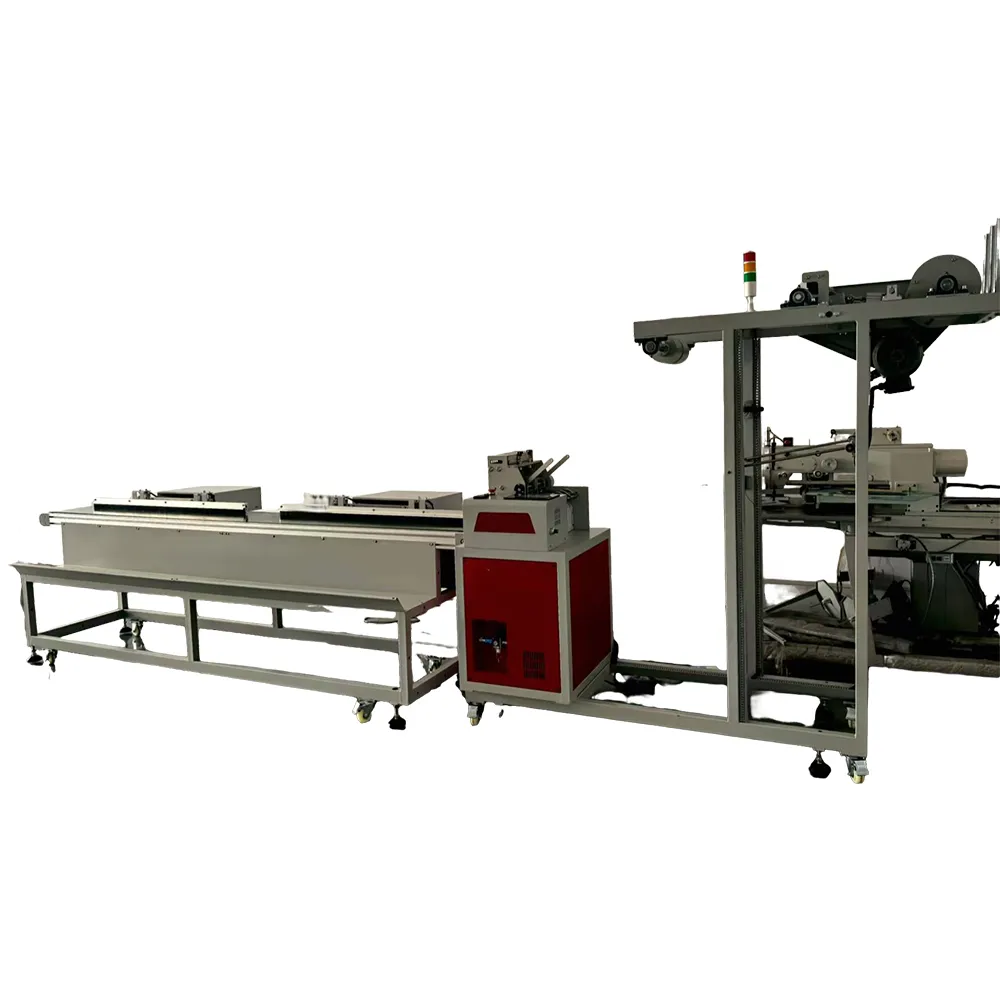

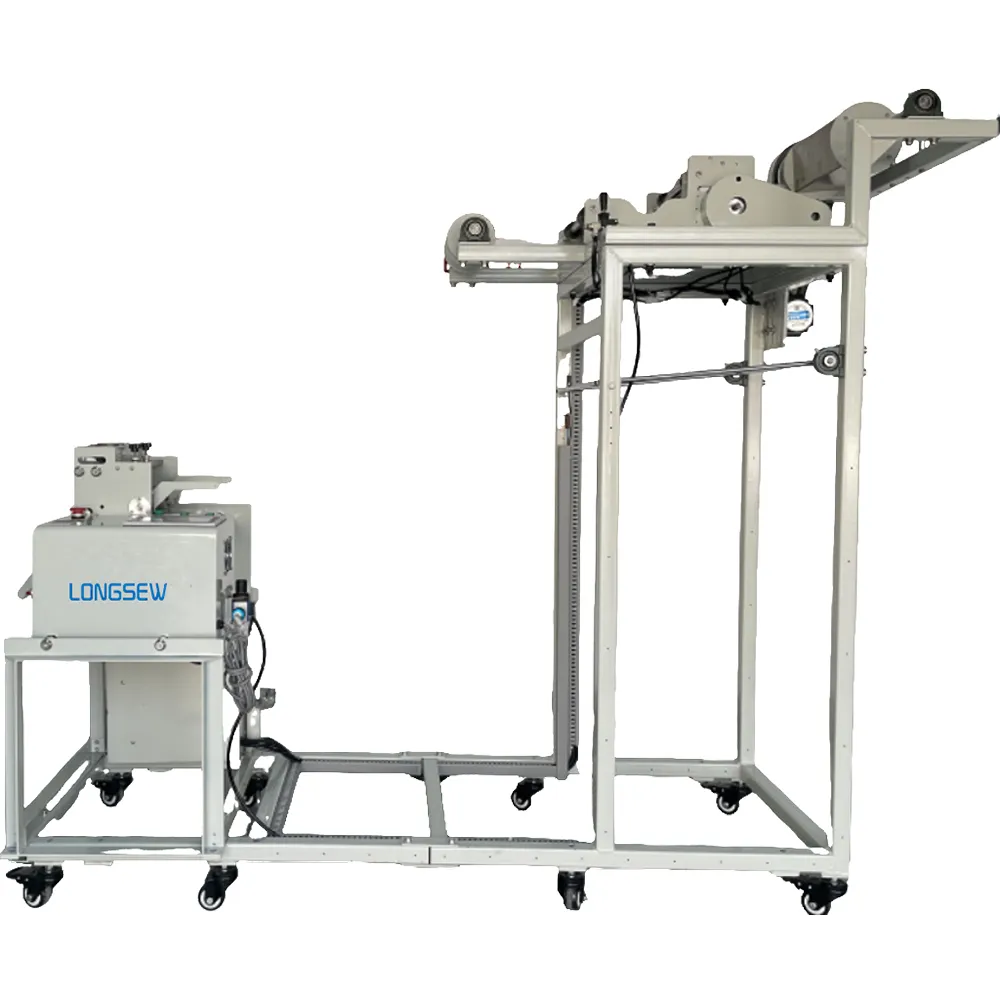

Automatic Hot Cutting Machine For Heavy Duty Lifting Slings And Lashing Straps LS-1800/1900

This machine use high temperature heating blades which can cut very thick synthetic webbing slings and ropes made of Nylon, Polyester and Polypropylene, hot cutting knife can greatly improve cutting efficiency, and prevent from sharp burrs.It with powerful and steady feeding system (top and bottom rollers) guarantees smooth feeding motion for extra heavy webbing straps and slings, cutting in accurate length. Automation of cutting processes, including automatic measuring, automatic cutting, automatic sealing, automatic marking etc; Material collecting system and material rolling system can make safety harness, seat belts, Ratchet straps / tie down straps and webbing lifting slings.Heavy duty construction ensures long working life and perfect quality stability, and very low maintenance costs (Only consumable parts: heating pipe and hot knife). Automatic feed equipment is available as option to maximize productivity and quality.



PDF DOWNLOAD
Product Detail
Product Tags





Automatic Hot Cutting Machine For Heavy Duty Lifting Slings And Lashing Straps LS-1800/1900Applications:



Thick lifting slings, lifting straps, crane slings, rigging slings, army webbing, military equipment and other industrial lifting belts, ratchet straps, lashing straps & tie downs, load restraint equipment, cargo restraint ratchet strap, safety belts, fall protection equipment & safety harness, rescue belts, safety lanyard, military webbing straps, seat belts, climbing ropes, safety ropes etc.



Automatic Hot Cutting Machine For Heavy Duty Lifting Slings And Lashing Straps LS-1800/1900Specifications:

Model:

LS1800/1900

Cutting tools:

Hot knife (It can automatically seal the opening and has a smooth cutting surface and no burrs)

Tool material:

DC53 (fully forged DC53)

Tool width:

220mm

Heating tube:

1200w imported high-power heating tube (maximum temperature 600 degrees)

Cutting length:

 0.1mm - 100m

Cutting speed:

10 - 26 cuts per minute (for a one-meter length)

Cutting method:

Pneumatic

Transportation method:

Double drum separation type transportation

Accuracy:

Precisely monitored by the stepper motor to ensure the length of each cut.

Automatic operation:

Just input the length, quantity and speed, and the rest of the work will be done automatically.

Memory function:

In case of power failure during operation, it automatically stores and remembers the number, tangent length, speed, etc.

Operation interface:

High-definition 7-inch large screen

Cutting machine 1800 dimensions:

                                       53*68*101

Cutting machine 1900 dimensions:

190*68*184
